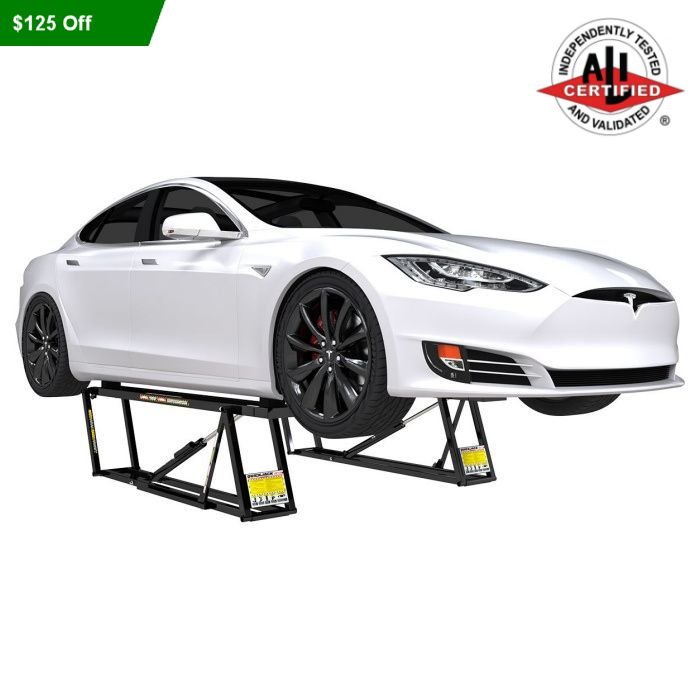

Ranger QuickJack Super Long Portable Car Lift System

Original price was: $1,499.00.Current price is: $1,048.99.

SKU: lifter109 Category: Vehicle Lifts

Description

The QuickJack 6000ELX Super Long Portable Car Lift System is recommended for use with EVs and vehicles with extra-long wheelbases. Bearing the distinction as the most unique lift in our lineup, the ELX is significantly longer than our EXT offerings because it was made to fit EV vehicles with extra-long wheelbases. Until now, only two-post lifts and four-post lifts with the assistance of rolling bridge jacks have been able to accommodate such vehicle types. Not every shop or garage has the space or willingness to give up that much flooring. With a 6,000-lb. capacity, our ELX will breezily handle luxury EV sedans that feature OEM jack points at the extreme edges of the vehicle chassis. Detailers and full-service auto shops will be seeing more and more of these EVs in the future, so they need to be ready!
Features

6,000 lbs. Capacity ALI Certified
From Stow To Go In Less Than 60 Seconds
Dual-Position Automatic Safety Lock Bars Engage Automatically As The Lift Rises
Dual Locking Positions – Mid Level And Full Rise
Extended, Cantilevered Rubber Block Trays Provide Increased Rubber Block Reach
Portable Power Unit Features A Remote Push-Button Control For Simple Operation
Steel Mounted UHMW Wheels Provide Effortless Rolling Of Jack Frames On Floor
Remote Pendant Control Features A 13-Foot Cord
Power Unit Features A Built-In Hydraulic Flow Divider For Precise Equalized Lifting
Open-Center Design For Clear Under Car Access
Quick-Connect/Disconnect Hoses For Fast And Convenient Set-Up
Convenient Handles Allow For Easy Positioning Of The Jack Frames
Strong 14-Gauge Welded Steel Frames
It’s A Jack You Can Use When You Need It Then Conveniently Store Out Of The Way
Provides Quick Wheels-Free Convenience For Brake And Tire Service And Clear Undercarriage Access Of All Types Of Vehicles
Low-Profile Jack Frames Fit Under Most Race Cars
Powerful Hydraulic Cylinders Eliminate The Need For Screw Mechanisms
Integrated Power-Assist Canisters Increase The Lowering Speed
Hydraulic Cylinders Feature Integrated Velocity-Fuse Safety Valves
A Convenient Metal Carrier With Handle Keeps The Power Unit Protected And Easily Mobile
Includes An Eight Piece Set Of Adjustable And Stackable Rubber Lift Blocks To Support Cars At Precise Locations For Increased Stability And Safety
Detailed Installation, Maintenance And Safety Instructions Accompany Each Quickjack System
Durable Powder Coat Finish

Note: This unit is configured with a 110V AC power unit.
Also Available 208-240V AC 50/60Hz
What’s Included

6000ELX Left Frame Assembly
6000ELX Right Frame Assembly
1x Hydraulic Power Unit With Control
4x Medium Rubber Lift Blocks (2″)
4x Tall Rubber Lift Blocks (3″)
2x Short Hydraulic Hoses
2x Long Hydraulic Hoses
2x Frame-Positioning Handles
Fittings And Thread Tape For Setup
Instruction Manual

Requirements

(3) Liters Of Automatic Transmission Fluid
Air Source To Inflate Air Cylinders Up To 50 PSI
Assembly Tools

Specifications

Model Number
3500SLX
5000TL
5000TLX
7000TL
7000TLX
6000ELX

Lifting Capacity
3,500 lbs.
5,000 lbs.
5,000 lbs.
7,000 lbs.
7,000 lbs.
6,000 lbs.

A – Lowered Height (Frame Only)
3″
3″
3″
3.5″
3.5″
3.5″

B – Lowered Height (with 2″ Block)
3.5″
3.5″
3.5″
3.75″
3.75″
3.75″

D – Lifting Height (with 2″ Block)
17.5″
21″
21″
21.5″
21.5″
21.5″

E – Lifting Height (with 3″ Block)
18.5″
18.5″
22″
22″
22.5″
22.5″

F – Max. Height
21″
24″
24″
24.5″
24.5″
24.5″

G – Lifting Height (with Adapters)
N/A
24″
24″
24.25″
24.25″
24.25″

G – Lifting Height (with Adapters + Pin)
N/A
26.75″
26.75″
27″
27″
27″
