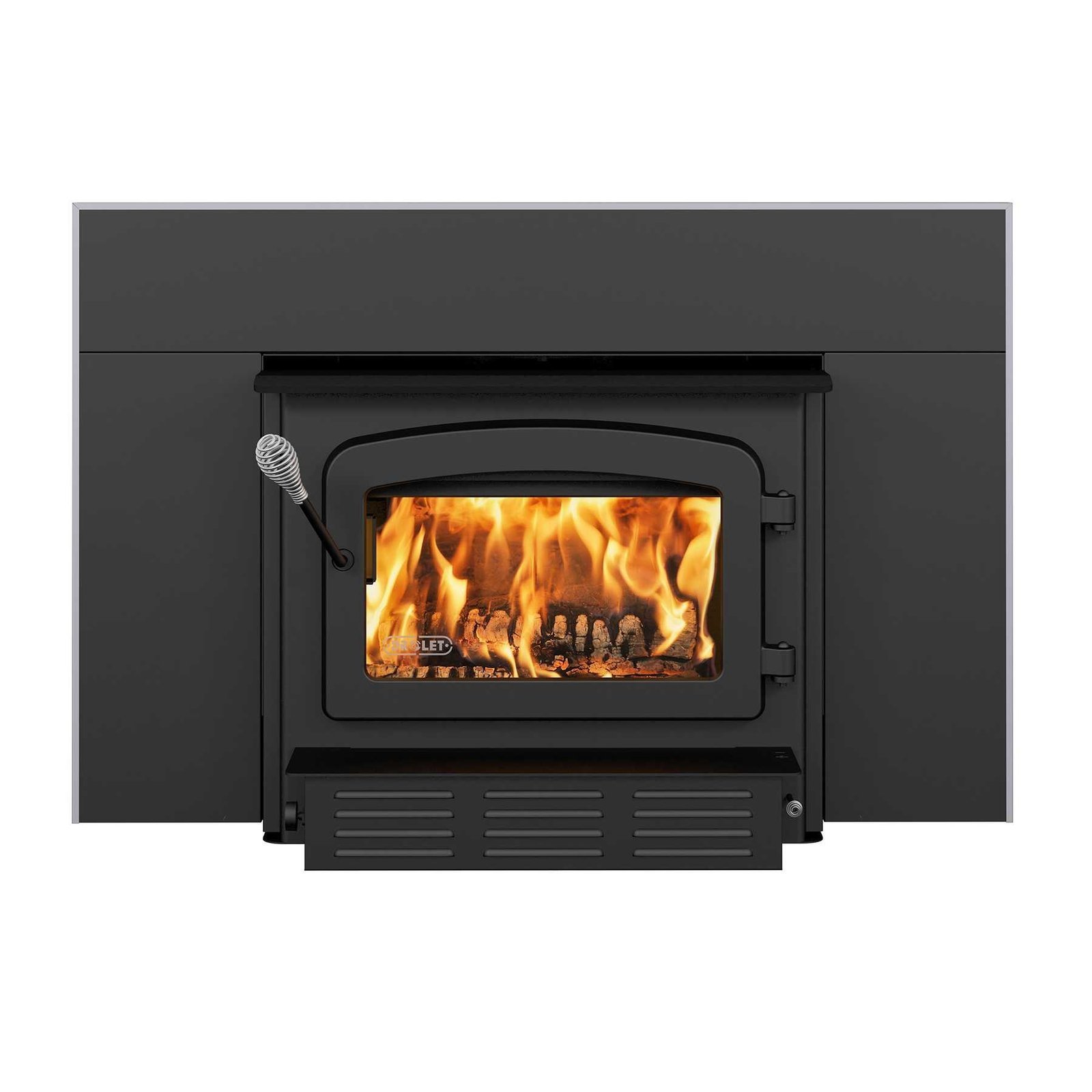

Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 2.3 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!
Included: blower, ceramic glass, ash lip, air damper
Suitable for masonry fireplaces only
Burn time up to 8 hours
Up to 20″ logs
2.4 ft³ firebox
Robust 5/16″ steel reinforced with a stainless steel heat shield
Glass airwash system for a cleaner view of the flames
EPA certified
Proudly made in Canada and the USA
Limited lifetime warranty
Faceplate much be purchased separately
Specifications
Fuel type
Dry cordwood (16″ recommended)
Heating area(9)
500 – 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h (22.0 kW)
Minimum overall heat output rate(4) (5)
14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4) (5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5) (6)
72 %
Average overall efficiency-dry cordwood (LHV)(5) (7)
77 %
Optimum efficiency(1) (2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h
Size
Large
Premium quality blower included (CFM)
144
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6″
Distance-center of the flue outlet to back unit
6 7/8″
Distance-center of the flue outlet to side unit
13 1/2″
Recommended chimney diameter
6″
Type of chimney
Liner – ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height
12′
Overall dimension (Width)
28 3/8″
Overall dimension (Height)
23 1/8″
Overall dimension (Depth)
26 3/8″
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2″
Door opening size (Height)
9″
Glass type
Ceramic glass
Glass surface – W x H
16″ x 9 1/4″
Steel thickness-body
3/16″
Steel thickness-top
5/16″
Firebox size (Width)
21″
Firebox size (Height)
11 7/8″
Firebox size (Depth)
16 1/2″
Maximum log length
20″
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
Minimum fireplace opening (Width)
28 7/8″
Minimum fireplace opening (Height)
23 3/8″
Minimum fireplace opening (Depth)
15 3/4″
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA / ASTM WK47329
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
405 lb (178 kg)
EPA-2020
Clearances to combustibles*
Canada
USA
Clearance – Base of the unit to ceiling**
84″84″
Clearance – Combustible side mantle to unit
9″9″
Clearance – Combustible top mantle to unit
27″27″
Clearance – Combustible side wall to unit
16″16″
Clearance – Top of the unit to a 12″ combustible mantle shelf
27″27″
