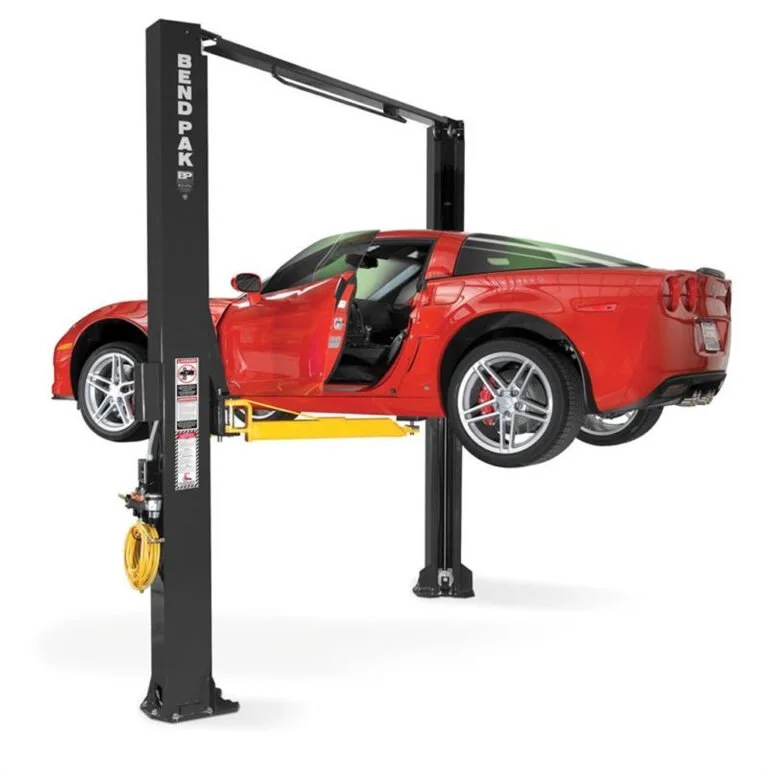

Bendpak 10,000 lb. capacity, 2-post lift, asymmetric

BendPak XPR-10AS-LP asymmetric two-post lift features our exclusive Low-Pro™ arms that accommodate lowered sports cars and those vehicles with exclusive lift points located on the extreme outer edges of the chassis. This super-industrial-strength piece of equipment has got it all: cutting-edge technology, top of the line materials, design that’s ahead of its time and a 10,000 pound lifting capacity. Fits in shops with ceilings higher than 12′, and it won’t crowd your floor while you work beneath a vehicle.

Lift arms shown with optional foot guards
10,000-lb lifting capacity
Expandable top beam accommodates wide or narrow drive-thru configuration
Double-telescoping screw pads offer increased versatility
Padded overhead safety shutoff bar
Exclusive Tru-Metric arm design for more versatile arm positioning
30° rotated single-piece columns
Single-point safety release
Dual hydraulic direct-drive cylinders
Oversized 53″ tall carriage for superior strength and durability
Electric / hydraulic power system
Large, 17″ x 19″ A36 steel base plate
Self-lubricating dura-glide UHMW polyethylene bearing system
Safety locks in each column spaced every 3″
Automatic arm restraints
Heavy-duty 1/2″ aircraft-quality equalizer cables
Oversized cable sheave diameter reduces cable fatigue
4-piece 63mm stackable adapter set comes standard
Versatile drop-in contact pads with stackable adapters
Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011



MODEL
XPR-10​AS-LP

Lifting Capacity*
10,000 Lbs. / 4,536 kg.

*Max Capacity / Front Axle
5,000 Lbs. / 2,268 kg.

*Max Capacity / Rear Axle
5,000 Lbs. / 2,268 kg.

A – Height Overall:
145″ / 3,683 mm*

B – Width Overall: (NARROW)
137″ / 3,480 mm .

B – Width Overall: (WIDE)
145″ / 3,683 mm.

C – Width Outside of Columns: (NARROW)
133″ / 3,378 mm.

C – Width Outside of Columns: (WIDE)
141″ / 3,581 mm.

D – Floor To Overhead Switch:
141″ / 3,581 mm.*

E – Inside Columns: (NARROW)
104″ / 2,642 mm.

E – Inside Columns: (WIDE)
112″ / 2,845 mm.

F – Reach (Front Arm Min.):
23-1/2″ / 597 mm.

G – Reach (Front Arm Max.):
38-1/2″ / 978 mm.

H – Reach (Rear Arm Min.):
34-1/2″ / 876 mm.

I – Reach (Rear Arm Max.):
54-1/2″ / 1,384 mm.

J – Min. Pad Height:
4.25″ – 6-3/4” / 108 mm. – 171 mm.

K – Rise:
69″ / 1,753 mm.

L – Max Lift Height (Pad Only):
73″ – 75″ / 1,854 – 1,905 mm.

M – Max Lift Height (3″ Adapter):
75.5″ – 77.5″ / 1,917 mm. – 1,968 mm.

N – Drive-Thru Clearance: (NARROW)
94″ / 2388 mm.

N – Drive-Thru Clearance: (WIDE)
102″ / 2591 mm.

Screw Pad Adjustment:
2″ / 51 mm.

Motor (**)
220 VAC / 60 Hz. 1Ph.

Time of full Rise:
45 Seconds

Max Load Per Arm:
2,500 Lbs. / 1134 Kg.
